HP-STL-FLEX

HP-STL-FLEX

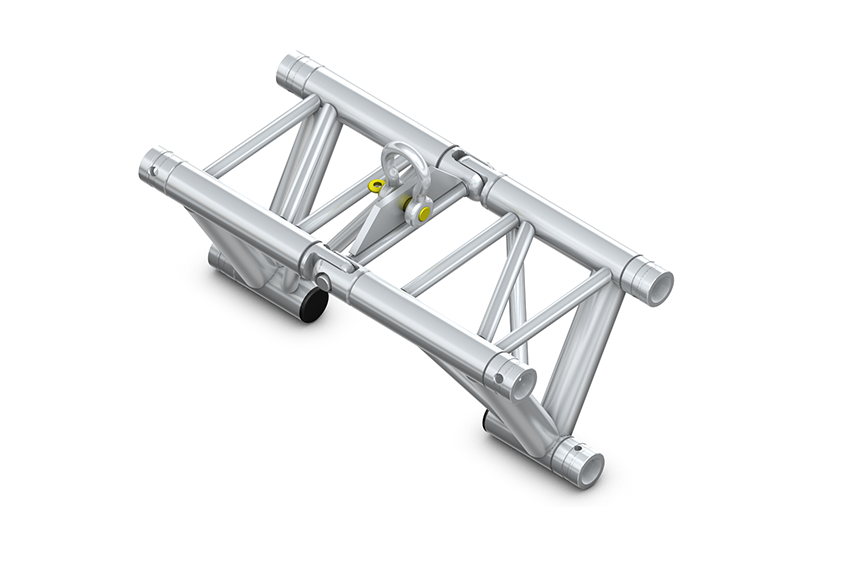

Flexible hanging point for determinated load distribution M390 trio truss , w/o connection kit

Technical details

Code
HP-STL-FLEX
Main Tube
48x3 mm
SWL
1000 kg (DGUV 17 / BGV C1)

Detailed information

Basisinformation

Beschreibung

This hanging point is designed to be used with M390 Trio truss. The suspension point is designed for overhead lifting. This unique solution allows lifting of long spans without the need of a 100% simultaneous lift. As the hanging point hinges, there is no shear or bending at the suspension point. The ideal solution for rigging long spans of truss by means of manual chain blocks. Version for M390 trusses available.

Der M390 ist in drei Anschlussvarianten - B, F und U - für den Anschluss an MILOS-Träger sowie an andere marktübliche Traversenverbindungssysteme* erhältlich.


Hauptvorteile

  • Design suitabble for overhead lifting as per DGUV 17 / BGV C1
  • Stamped with WLL 1000 kg and CE
  • Hinges upwards and downwards
  • Increased truss stability due to lower point of gravity by eccentric pick up point
  • Adapts 3.2 ton shackle
