Das größte Dach der Milos MR-Reihe für sehr anspruchsvollste Konzerte und große Festivals.

Code
MR5 24x14m, 20x14m, 18x14m
Max. Stage Dimensions
24x14 m
Max. Clearance
14,42 m
Max. SWL
12500 kg
Wind Rating
74 / 100 km/h (in Betrieb / außer Betrieb)

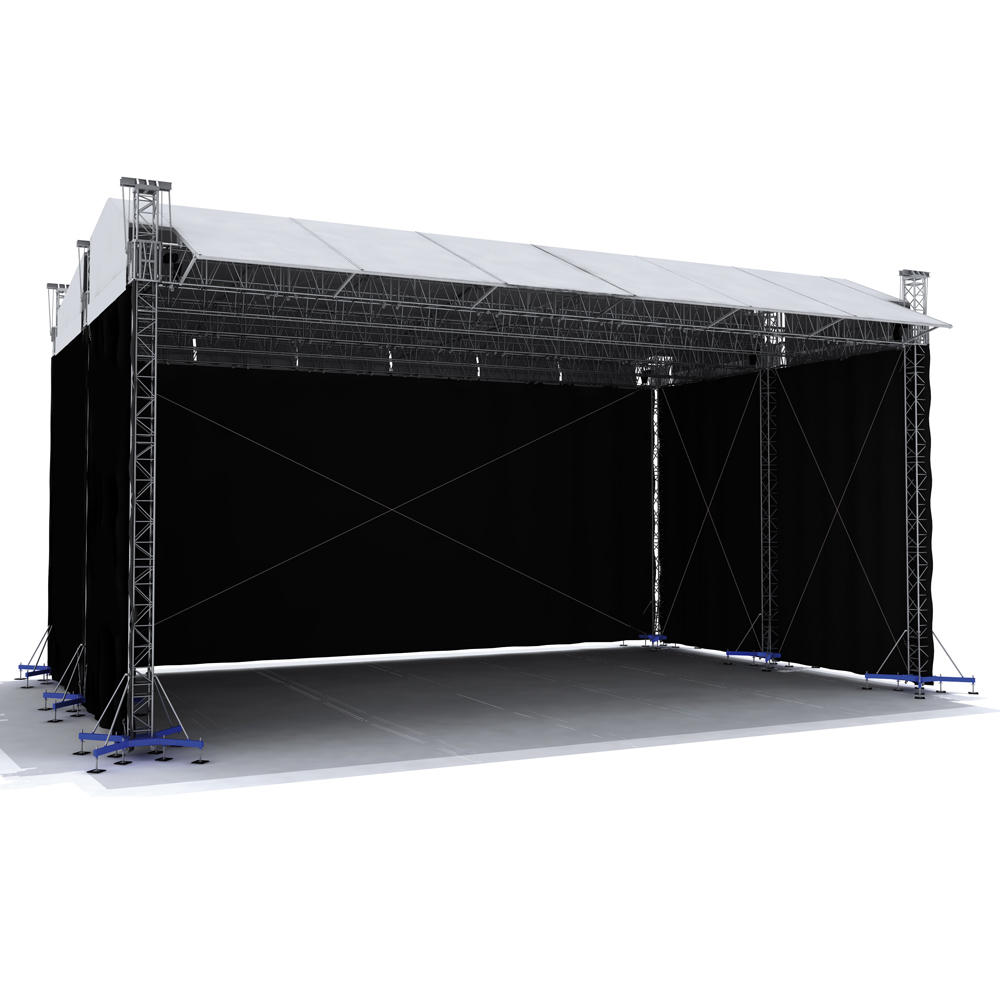

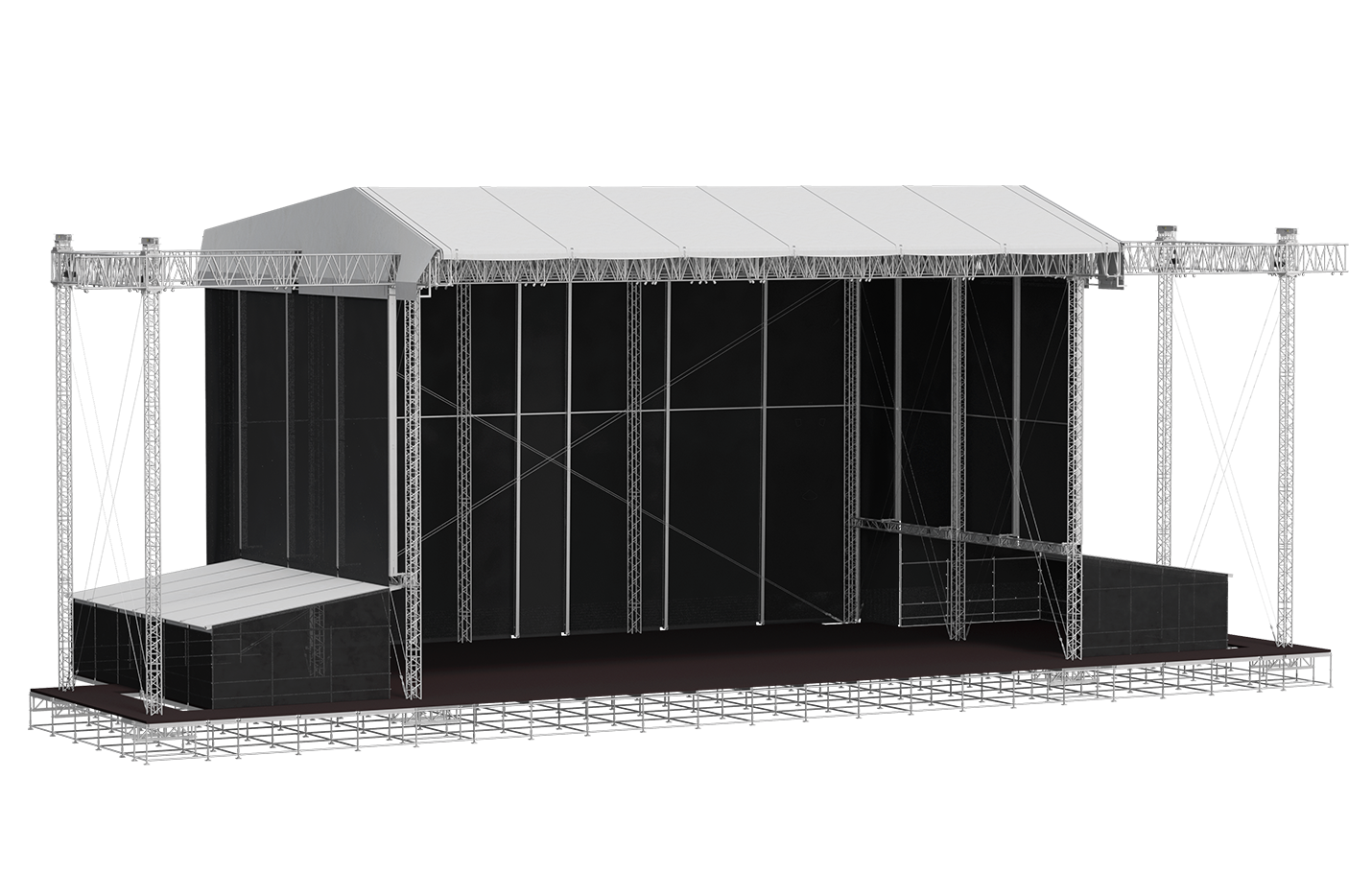

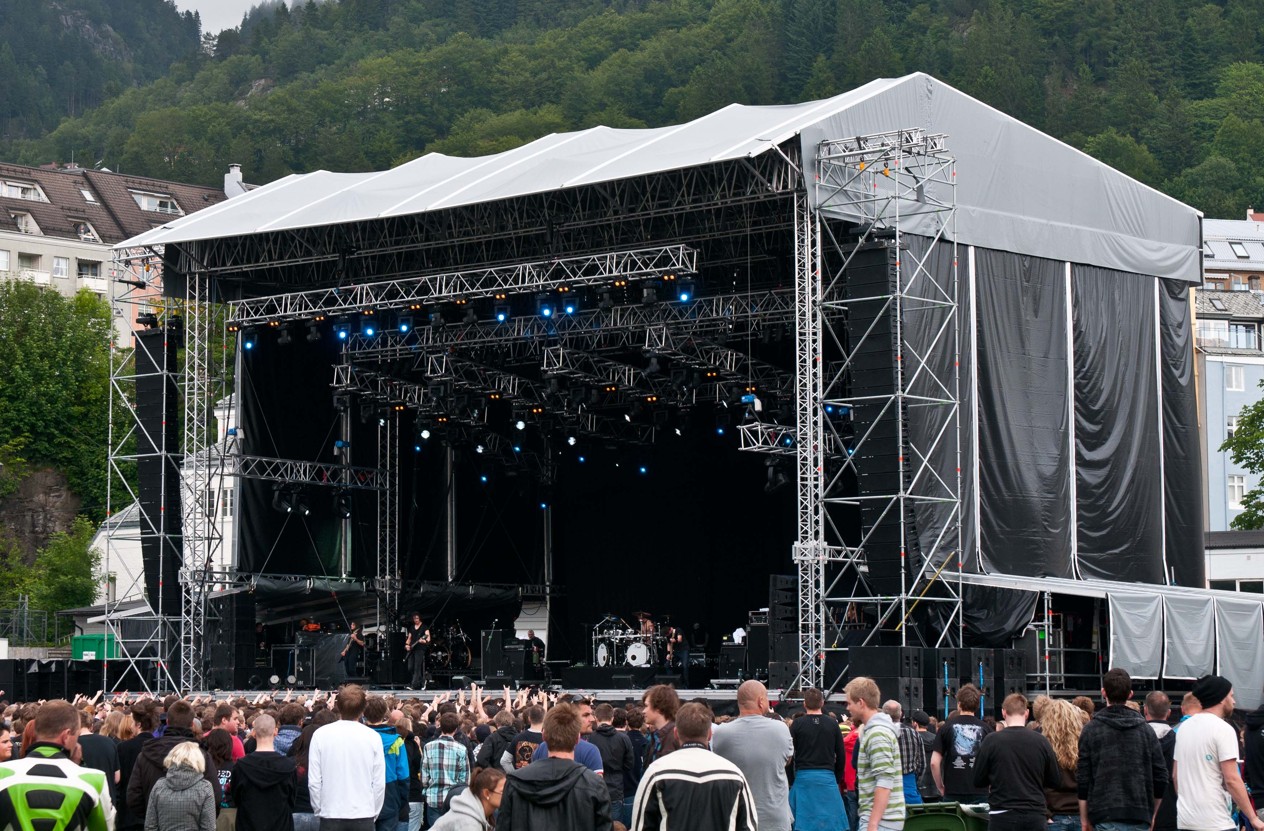

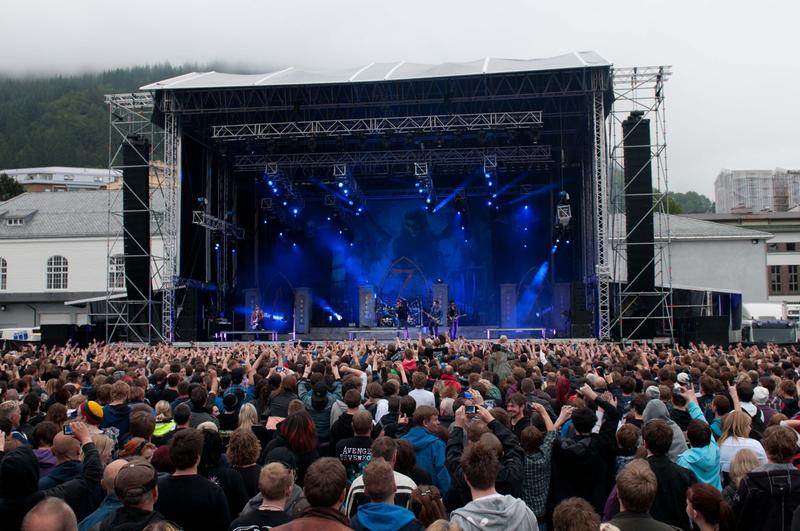

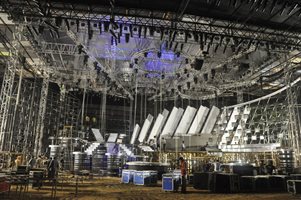

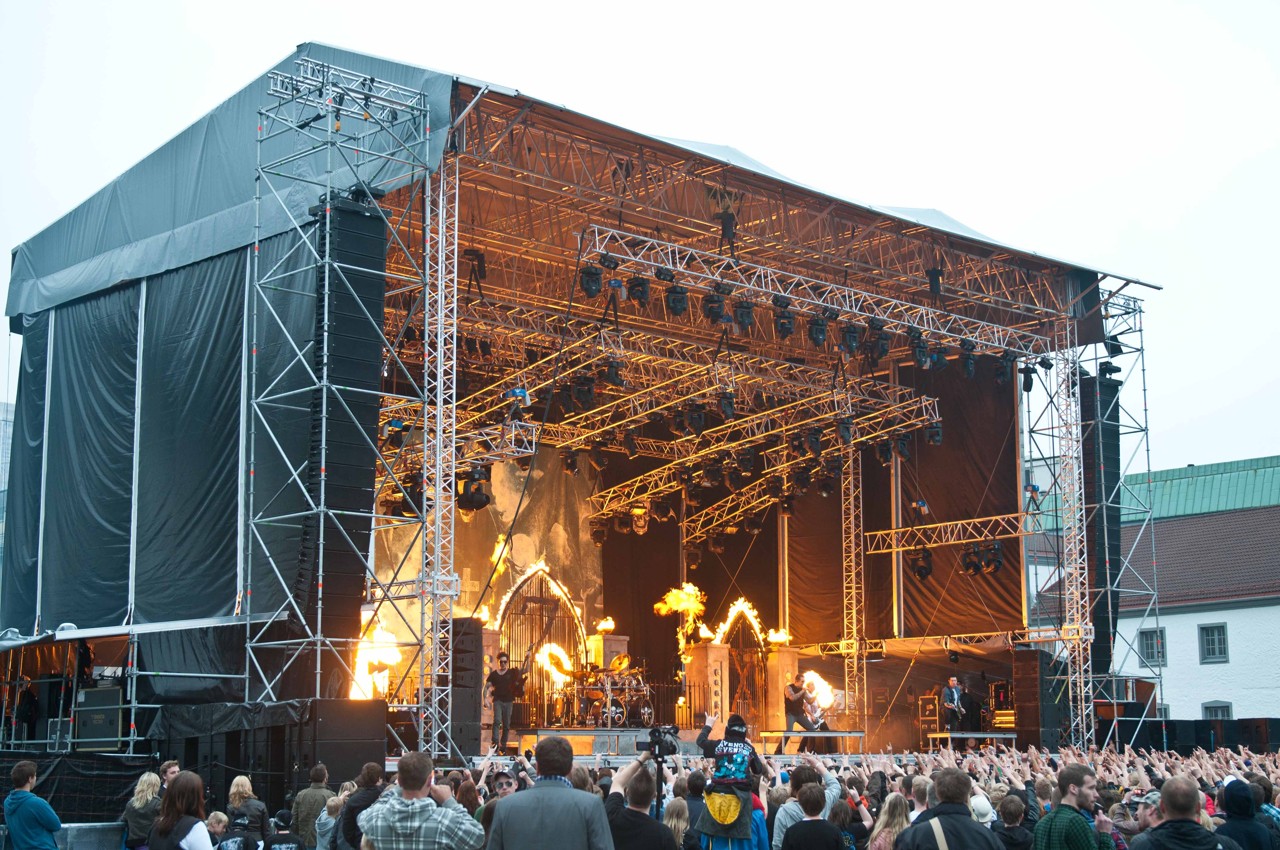

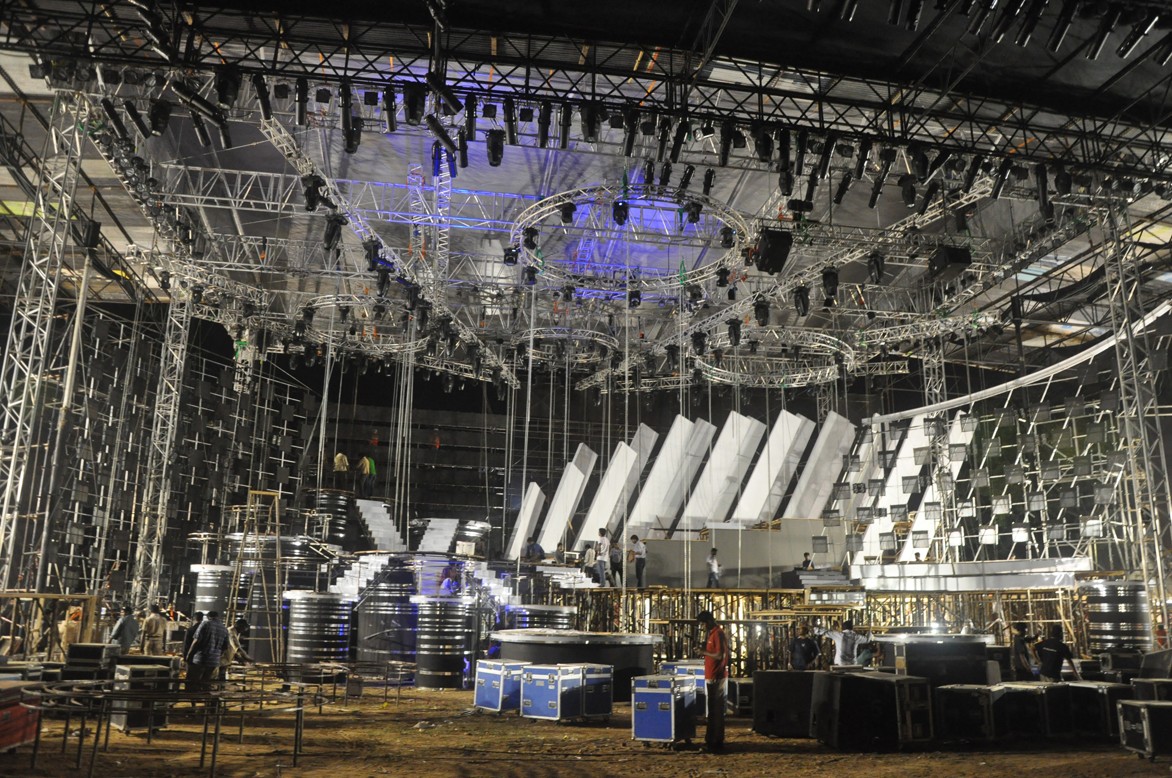

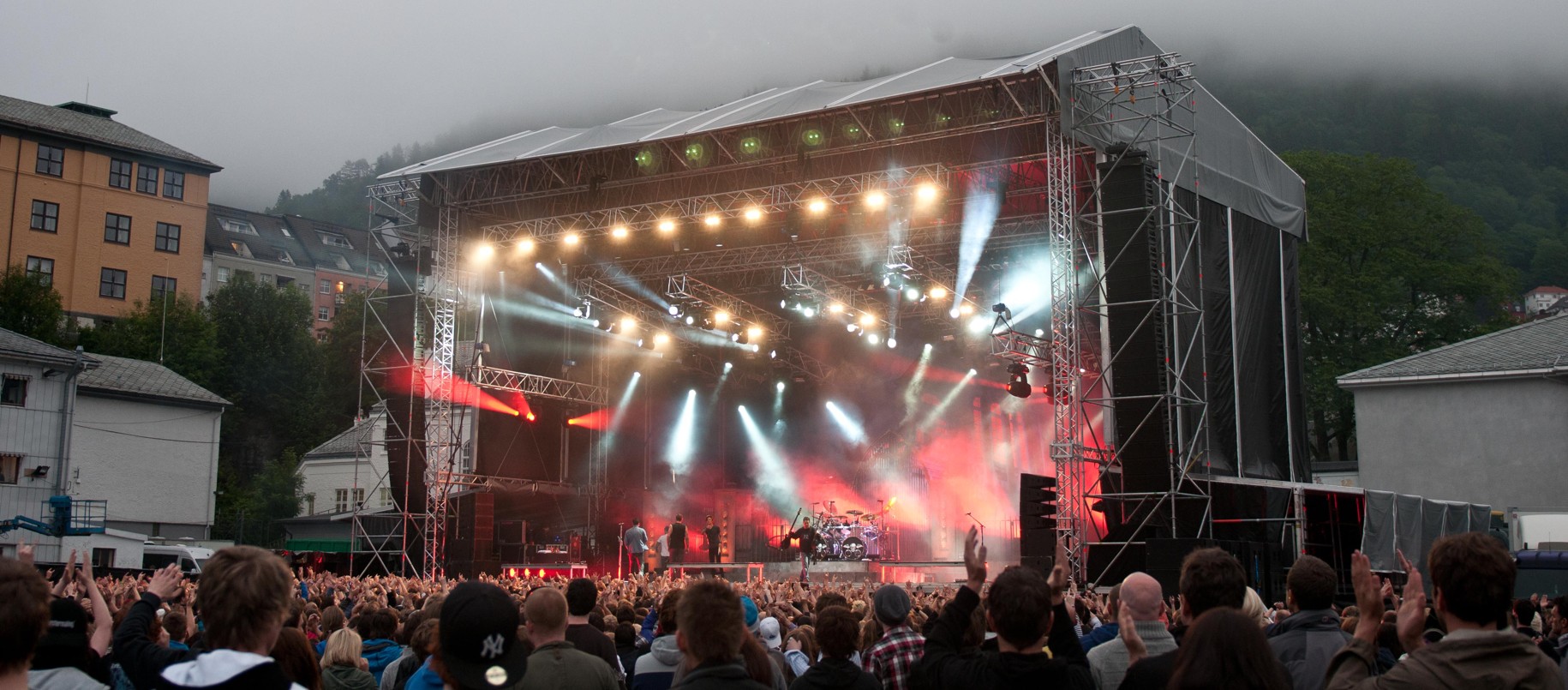

MR5 Kederdach (24x14m & 20x14m)

Detailed information

Beschreibung

Hier ist die Größe tatsächlich ausschlaggebend: Das MR5-Dach ist das größte in der Milos-MR-Range. Es schafft riesige Bühnenareale für Megaevents. Alle MR5-Dachsysteme sind von zertifizierten Schweißern hergestellt und werden mit statischen Kennwerten und einer Aufbauanleitung geliefert. Rufen Sie an oder mailen Sie uns für mehr Informationen oder ein Angebot.
Technical specification
Dimensions   Stage size 24x14 m 78,74x45,93 ft 20x14 m 65.62x45.93 ft
A Internal width 24.37 m 79.95 ft 20.37 m 66.83 ft
B Overall external width 47.03 m 154.30 ft 43.03 m 141.17 ft
C Internal depth 14.64 m 48.03 ft 14,64 m 48.03 ft
D Overall external depth 18.78 m 61.61 ft 18.78 m 61.61 ft
E Clearance 13.14 m 43.12 ft 13.14 m 43.12 ft
F Overall height 16.20 m 53.15 ft 16.20 m 53.15 ft
G PA wing – internal width 8.37 m 27.46 ft 8.37 m 27.46 ft
H PA wing – overall external width 8.76 m 28.74 ft 8.76 m 28.74 ft
I Cantilever depth 2.32 m 7.61 ft 2.32 m 7.61 ft

Loading capacity
Loading capacity   Stage size 24x14 m 78.74x45.93 ft 20x14 m 65.62x45.93 ft
Main grid  (UDL) 22000 kg 48500 lbs 22000 kg 48500 lbs
  Side wings in total 4000 kg 8818 lbs 4000 kg  8818 lbs
* See structural reports for exact load positioning

Loading capacity ARNOLD
Loading capacity ARNOLD   Stage size 24x14m 78.74x45.93 ft 30x16 m 65.62x45.93 ft
Main grid  (UDL) 30000 kg 66137 lbs 28000 kg 61728 lbs
  Side wings in total 4000 kg 8818lbs 4000 kg 8818 lbs
* See structural reports for exact load positioning

Operational specifications
Design standarts EN 17879
EN 1991-1-4
EN 1993
EN 1999
Event structures – Safety requirements
Loads on structures: Wind loads
Design of steel structures
Design of aluminium structures
Wind management Out of service
In service
28,3 m/s - 100km/h - 62mph (Max. gust windspeed)
17,8m/s - 64km/h - 40mph (Max. gust wind speed)
* Calculation based on 100% windproof cladding on rear wall, side walls and side wing fronts
*Cladding on side walls and rear wall must be dismantled; the upper half of the side wing fronts can remain covered (e.g. by LED screens)
Ballast Depending on configuration, side wing, covering, compression beam, guy wires, corner brace, substructure
Canopy & sidewalls B1 fire retardant canopy on request, kedders profiles optional
Silvergrey; other colors or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customised Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on request
