MILOS. Flexibility Behind Your Show.

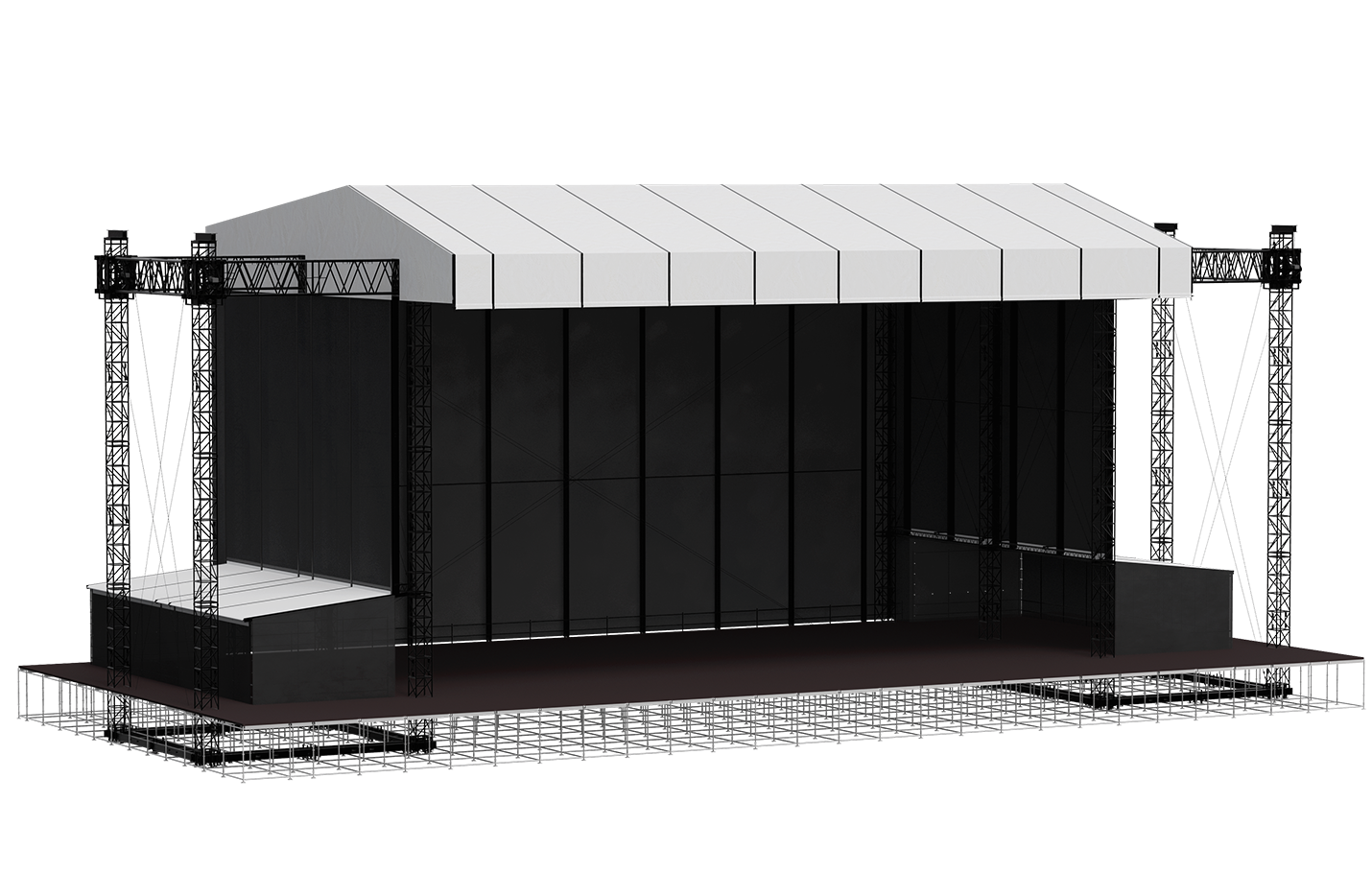

The MILOS Steel Truss Roof (24x25 m) achieves an incredible 128 t capacity which handles the most demanding needs of the world’s biggest shows.

Code: S-MR20 32x25, 24x25

Detailed information

•Constructed from ultra-high-strength steel
•Dimensions 32×25 m (105×82 ft) or 24×25 m (78×82 ft)
•Incredible 128 t (282183 lbs) capacity achievable with 24×25 m stage configuration
•Unique locking system with capacity of 45 t per tower

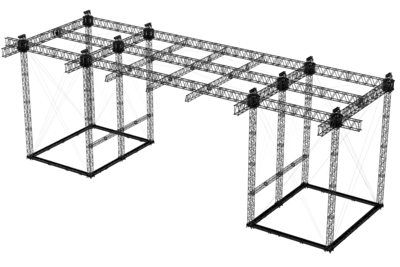

•Integrated steel base with interconnecting towers
•Towers with integrated ladder for easy climbing
•Base with multiple attachment points for steel wires
•Canopy tensioning system for roof top canopies
•Keder profiles for secure attachment of canopies
•Covered backstage areas on sides as an option
•PA wings options available on request

Contact Us

Asia

US East

Erhalten Sie Angebot

Technical specification
Dimensions		Stage size	32x25 m	104.98x82.02 ft	24x25 m	78.74x82.02 ft
	A	Internal width	32.70 m	107.28 ft	24.70 m	81.03 ft
	B	Overall external width	54.10 m	177.49 ft	46.10 m	151.25 ft
	C	Depth	20.00 m	65.61 ft	20.00 m	65.61 ft
	D	Overall external depth	25.55 m	83.83 ft	25.55 m	83.83 ft
	E	Clearance	18.40 m	60.36 ft	18.40 m	60.36 ft
	F	Overall height	23.30 m	76.44 ft	23.30 m	76.44 ft
	G	PA wing – internal width	8.72 m	28.61 ft	8.72 m	28.61 ft
	H	PA wing – overall external width	9.50 m	31.17 ft	9.50 m	31.17 ft
	I	Cantilever depth	4.50 m	14.76 ft	4.50 m	14.76 ft

Loading capacity
Loading capacity		Stage size	32x25 m	104.98x82.02 ft	24x25 m	78.74x82.02 ft
	Main grid	(UDL kg/lbs)	60000 kg	132273 lbs	100000kg	220456 lbs
		Side wings and PA in total	28000 kg	61728 lbs	28000 kg	61728 lbs
	* See structural reports for exact load positioning

Operational specifications
Design standarts	EN 17879 EN 1991-1-4 EN 1993 EN 1999	Event structures – Safety requirements Loads on structures: Wind loads Design of steel structures Design of aluminium structures
Wind management	Out of service In service	28m/s - 100km/h - 62mph (Max. gust windspeed) 17,8m/s - 64km/h - 40mph (Max. gust wind speed)
Wind management	Calculation based on 100% windproof cladding on rear wall, side walls and side wing fronts Cladding on side walls and rear wall must be dismantled at heights above 7 m; side wing fronts can remain covered (e.g. by LED screens)
Ballast	Depending on configuration, side wing, covering, compression beam, guy wires, corner brace, substructure
Canopy & sidewalls	B1 fire retardant canopy on request, kedders profiles optional Silvergrey; other colors or inside black on request B1 fire retardant side nets in compliance with latest Eurocodes
Customised	Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on request
