MILOS. Flexibility Behind Your Show.

Quatro Trio Duo

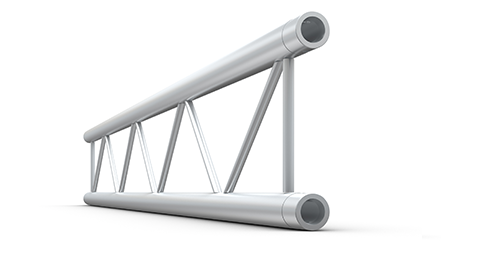

Die M222 Konustraverse ist die richtige Wahl für Ladenausstattung, Schaufenstergestaltung und dekorative Anwendungen.

Code: BTM

Main Tube: 32 x 1,5 mm

Braces: 10 x 1.5 mm

Available Length: 0,5 - 4 m

Max. SWL: 278 kg

Size: 222 mm

Span: 8 m

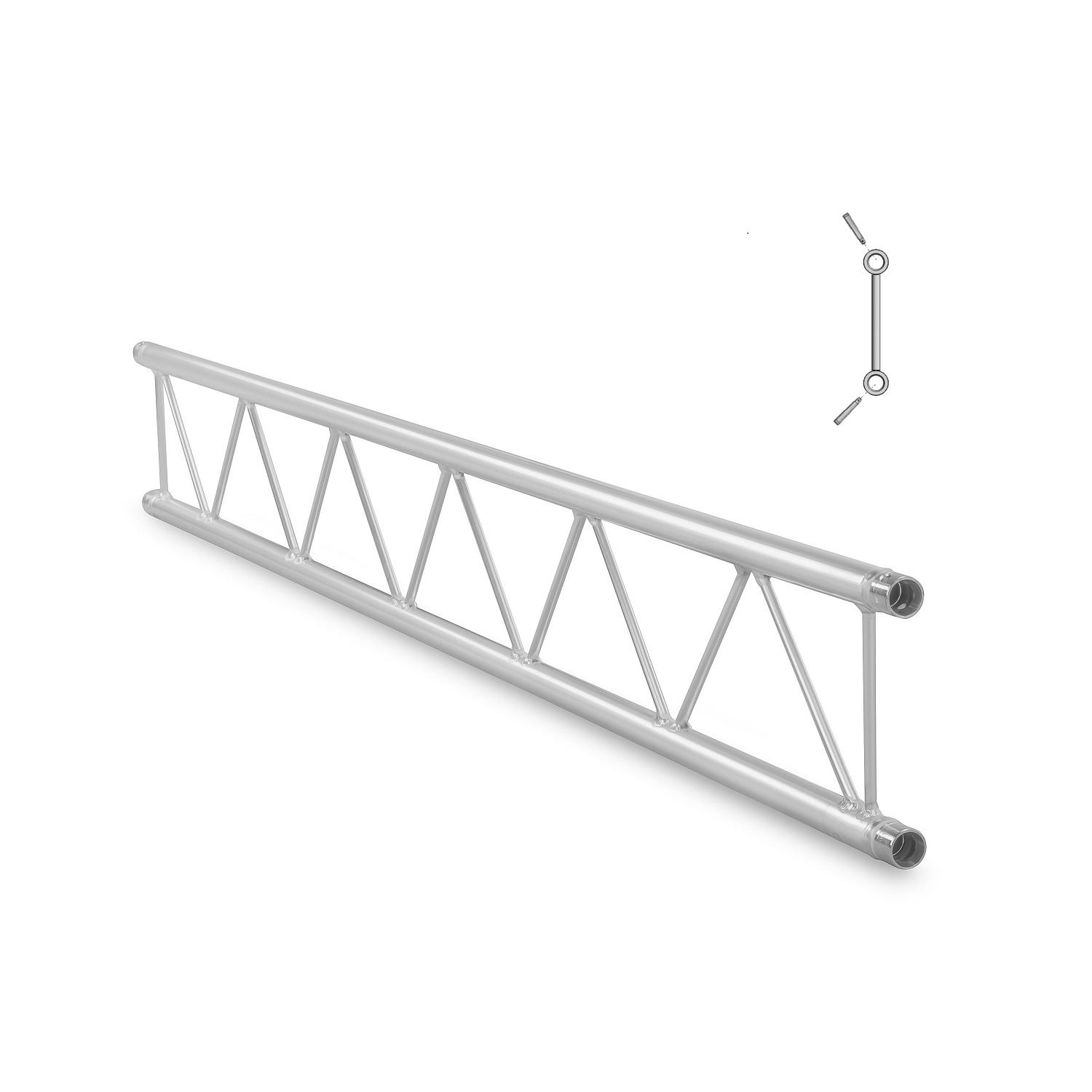

M222

Detailed information

Beschreibung

STANDARDLÄNGEN UND GEWICHTE
	0,5 m	1 m	1,5 m	2 m	2,5 m	3 m	4 m
Duo	0,95 kg	1,7 kg	2,55 kg	3,4 kg	4,25 kg	5,1 kg	6,9 kg
Trio	1,15 kg	2,3 kg	3,45 kg	4,6 kg	5,75 kg	6,9 kg	9,2 kg
Quatro	1,75 kg	3 kg	4,55 kg	6 kg	7,5 kg	9,1 kg	12,29 kg

Downloads

M222

Contact Us

UK

+44 (0)1945 410700

DE

+49 251 2024014-0

EU

+420 416 837 846

Asia

US East

+1 800 411 0065

Erhalten Sie Angebot

STANDARDLÄNGEN UND GEWICHTE
	0.5 m	1 m	1.5 m	2 m	2.5 m	3 m	4 m
Duo	0.60 kg	1.10 kg	1.60 kg	2.10 kg	2.40 kg	2.90 kg	3.80 kg
Trio	1.00 kg	2.00 kg	2.70 kg	3.40 kg	4.20 kg	5.00 kg	6.50 kg
Quatro	1.40 kg	2.40 kg	3.40 kg	4.50 kg	5.50 kg	6.60 kg	8.70 kg

Längen

BTM500|0.5m

BTM578|0.578m

BTM1000|1m

BTM1500|1.5m

BTM2000|2m

BTM2500|2.5m

BTM3000|3m

BTM4000|4m

Winkel

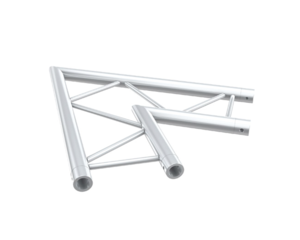

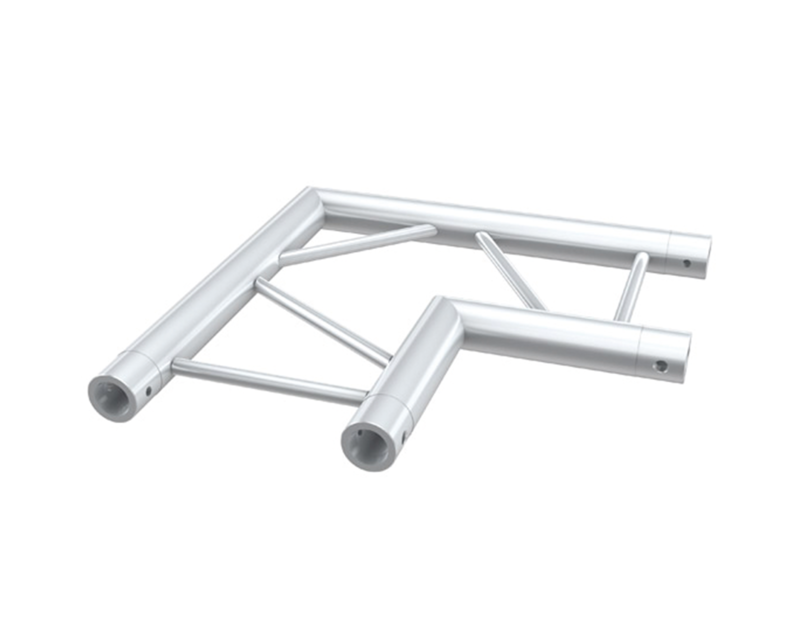

HM21|2way90dg

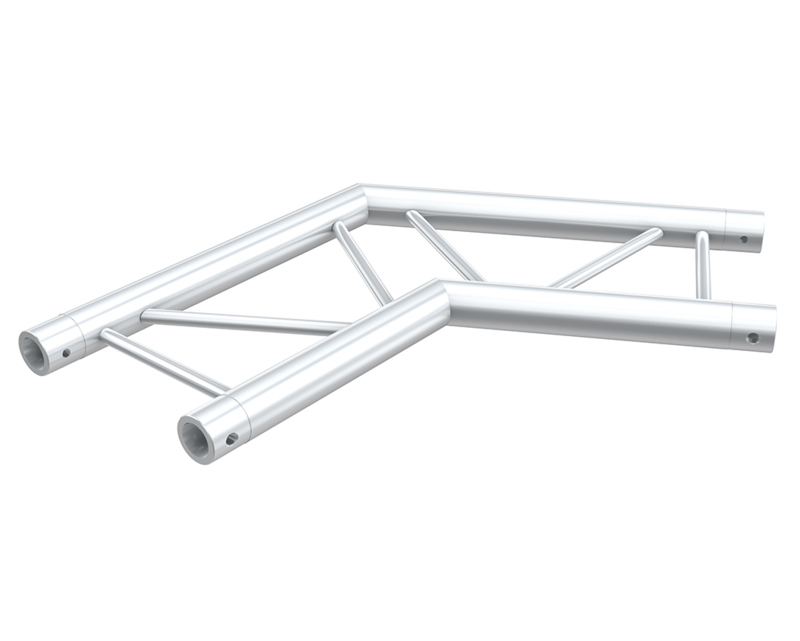

HM22|2way120dg

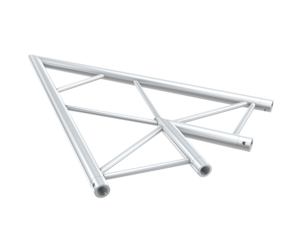

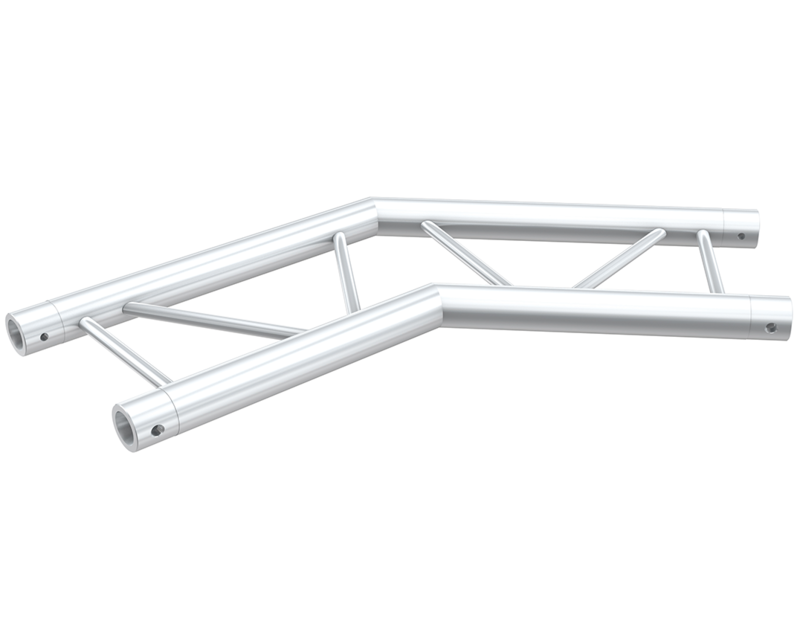

HM23|2way135dg

HM31|3way90dg

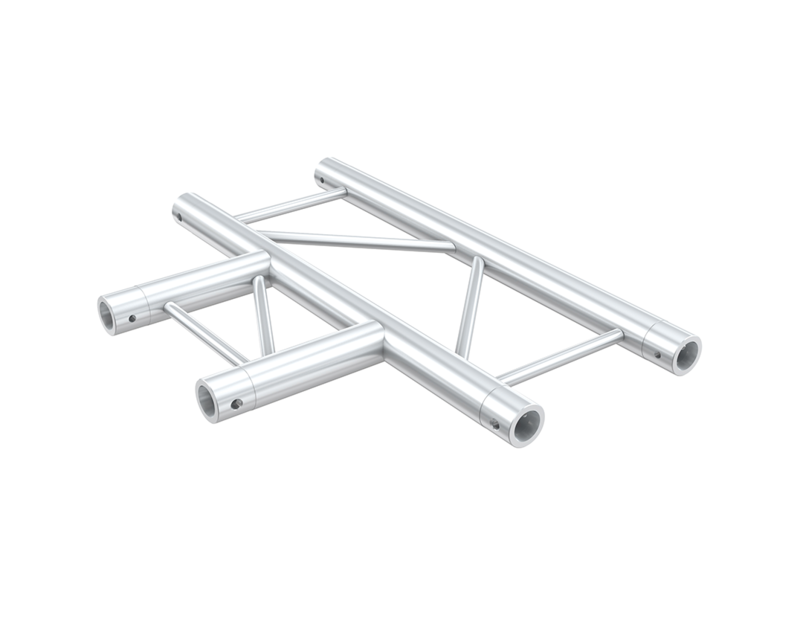

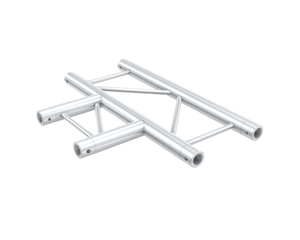

HM35|3wayT

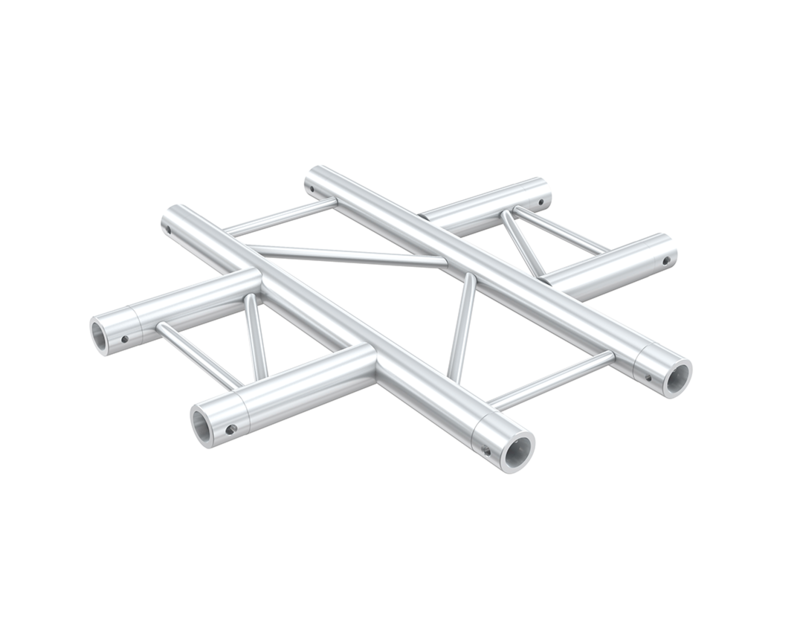

HM41|4way

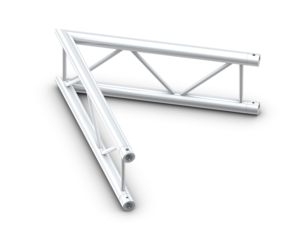

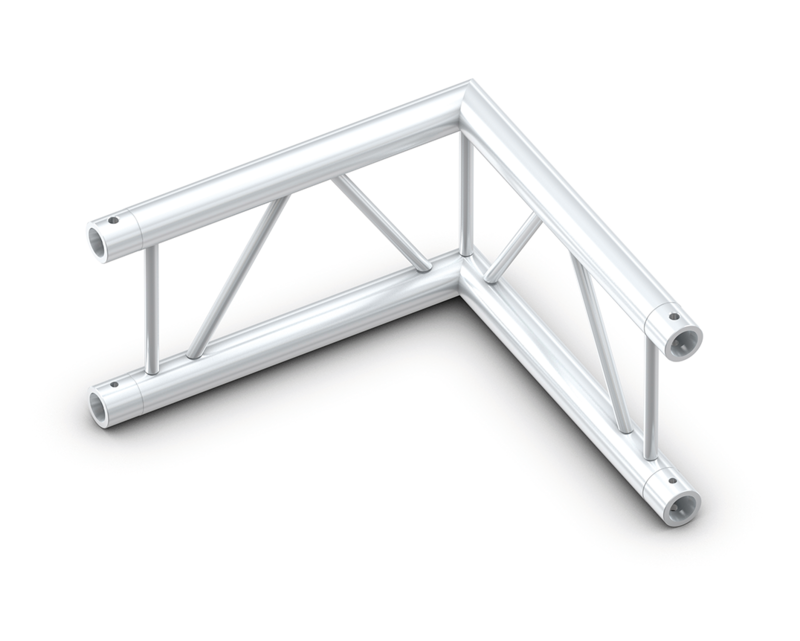

VM21|2way90dg

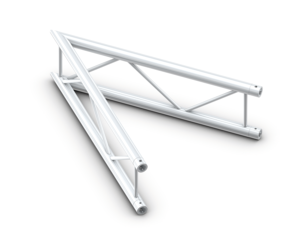

VM22|2way120dg

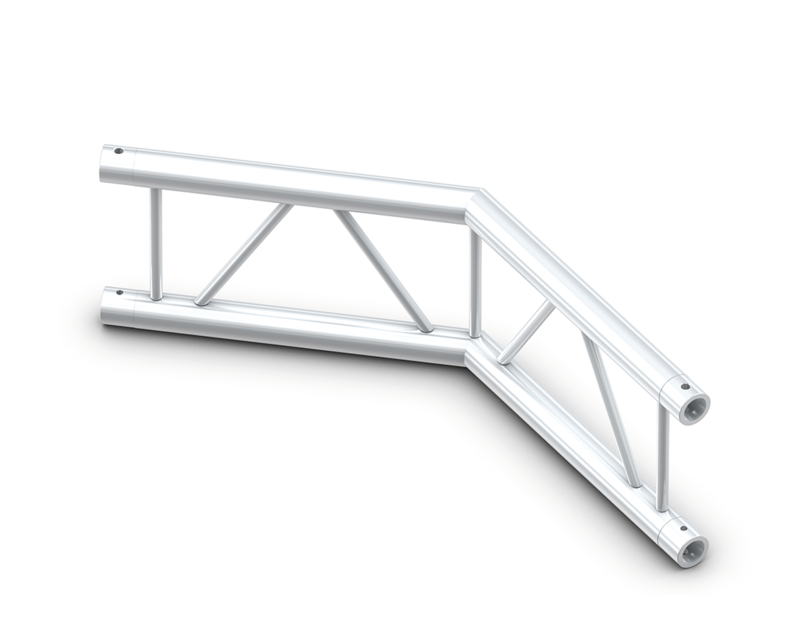

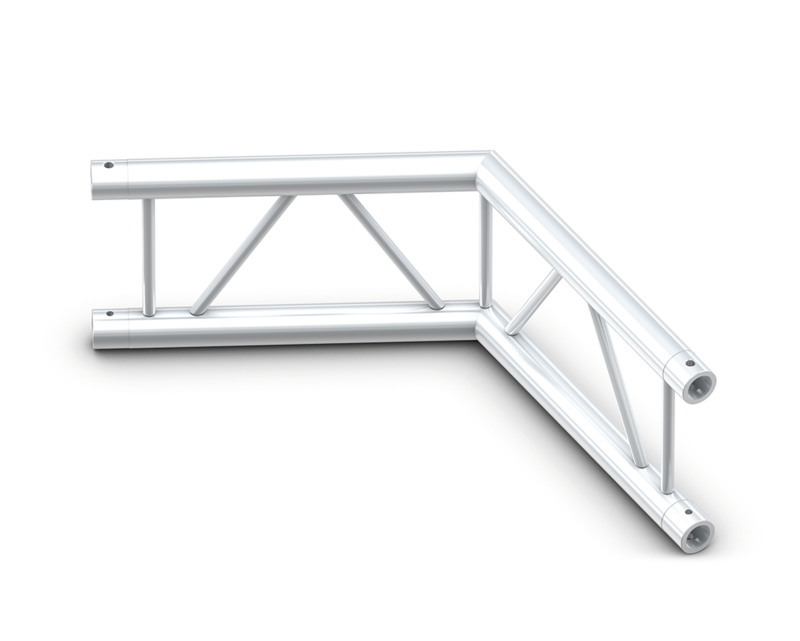

VM23|2way135dg

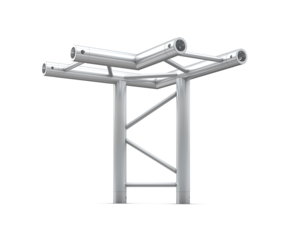

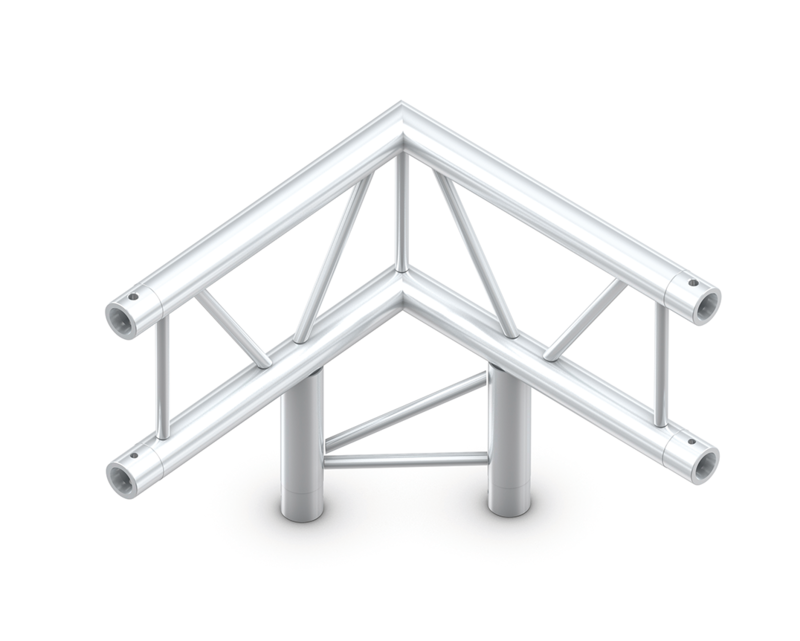

VM31|3way90dg

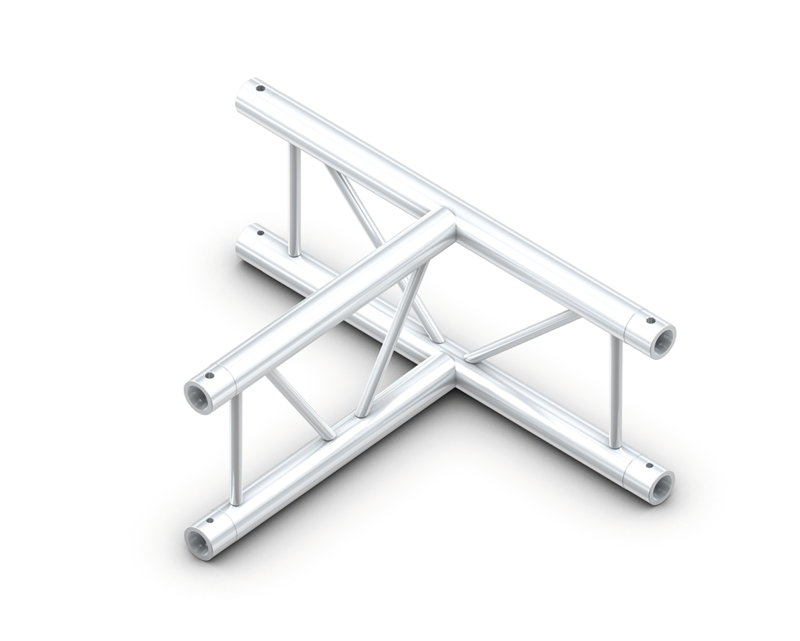

VM36|3way90dg

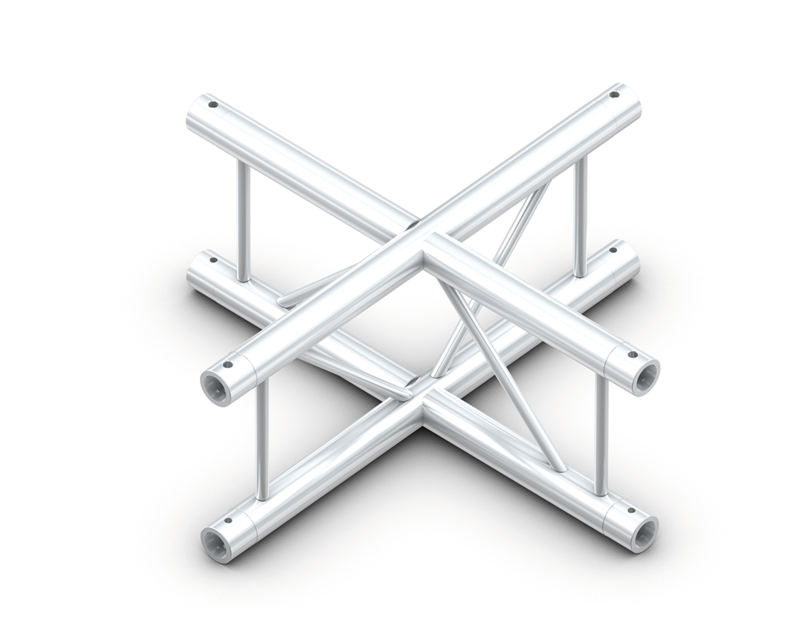

VM41|4way

Kreis

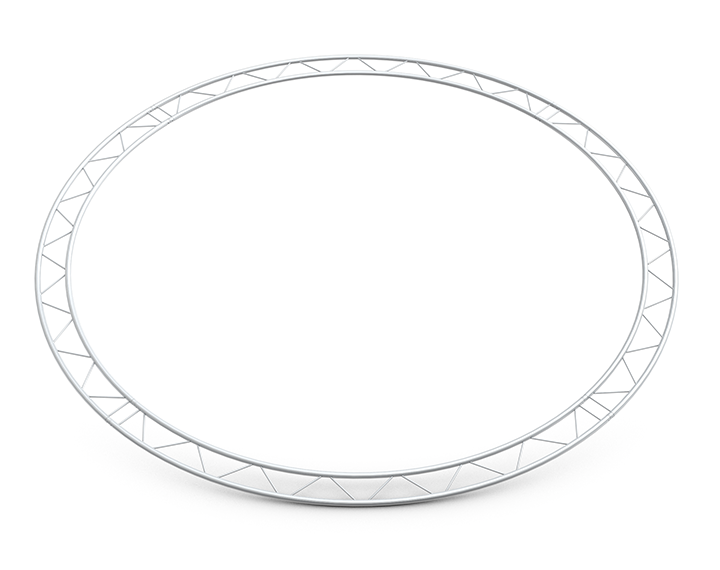

CrBTMd2000|4/4|h

CrBTMd2000|4/4|h

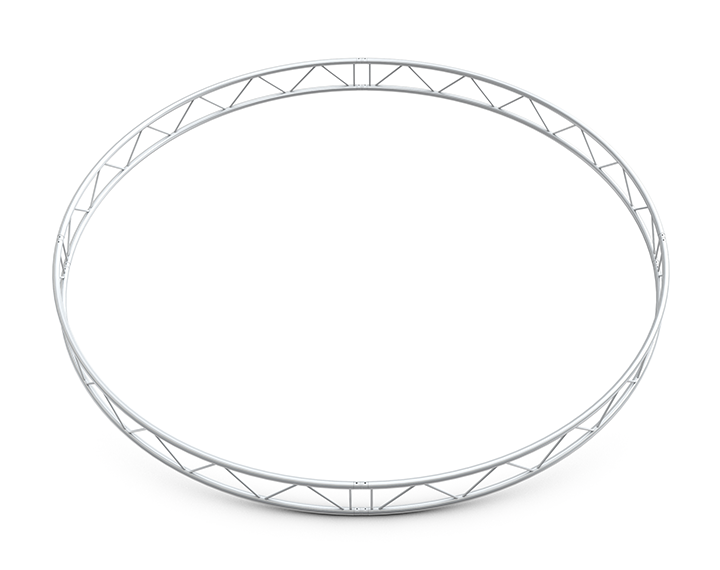

CrBTMd2000|4/4|v

CrBTMd2000|4/4|v

CrBTMd3000|4/4|h

CrBTMd3000|4/4|h

CrBTMd3000|4/4|v

CrBTMd3000|4/4|v

CrBTMd4000|4/4|h

CrBTMd4000|4/4|h

CrBTMd4000|4/4|v

CrBTMd4000|4/4|v

CrBTMd5000|8/8|h

CrBTMd5000|8/8|h

Type

Accessories

BASEPLATE-DOLLY-M-B-K-600x600

BASEPLATE-DOLLY-M-B-K-600x600

BasePlateRubberPad |BBP600x600

BasePlateRubberPad |BBP600x600

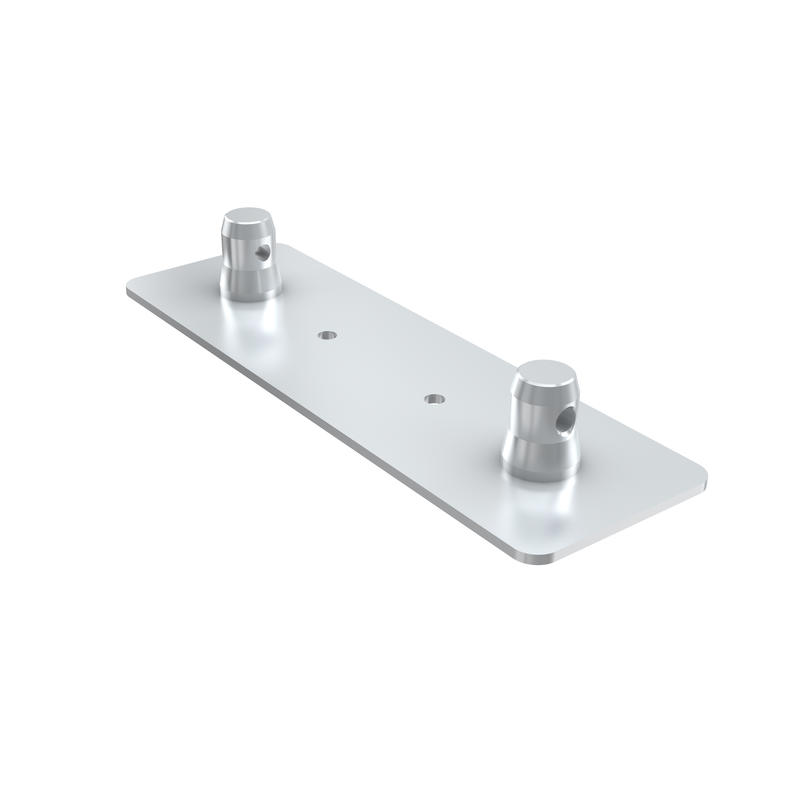

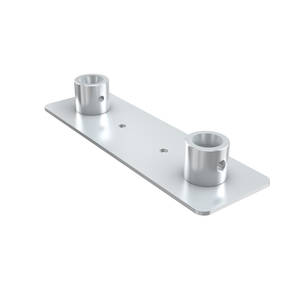

BBP1200X300|QTB|STEEL

BBP1200X300|QTB|STEEL

BBP600x600x6|QTB| STEEL

BBP600x600x6|QTB| STEEL

BBPd800|QTB|STEEL

BBPd800|QTB|STEEL

CCM

CCMD10

CCMD20

CCMD30

CCMD40

CCMM8|MALE

CL32|clear

CON03M|CELL

CON04M|CELL

CON18M|PARCELDUO

CON18M|PARCELDUO

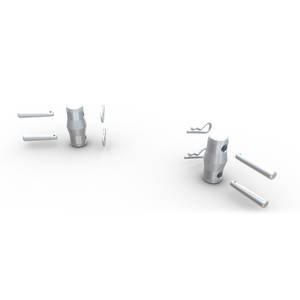

CON84M|ParcelQC|MalePin

CON84M|ParcelQC|MalePin

CS-M222

CS-M222|color

EyeBoltM06

MWPD|FEMALE

MWPDC|MALE

PM|PIN

PMM6SET

SRPB
